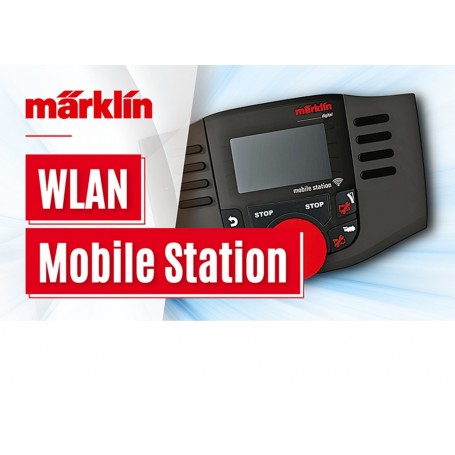

Märklin WLAN Mobile Station (wireless) DCC and mfx (complete set)

Wireless Operating Enjoyment
The MS WLAN feature an interactive display and a newly designed control knob

This complete 4-pack set consist off:
- 60667 Mobile Station WLAN
- 60116 Digital Connector Box
- 60117 WLAN Receiver Box
- 66367 Switched Mode Power Pack, 120 Volts

Operate your layout wirelessly with one hand by using the Mobile Station WLAN!

NOTE: All components can be bought separately.

$419.99 $532.99 -21.2%
Currency selector Upper-Right Corner: $=USD, CA$=CAD
 In Stock


In the event of a warranty issue, we will assist with your claim to respective manufacturer.



We ship world wide with Canada Post. Cost will be provided at checkout. Free pick-up in store.



Store Policy: All sales are final. We do not take any item in return or exchange for any reason.

Highlights:

  • Easy operation familiar from the MS2 without looking at it.
  • Single-hand operation with the handle (Pop Socket) included with this controller on the back of the latter.
  • New tactile control knob for even easier handling.
  • Backlit graphics display with self-explanatory pictograms.
  • Display contents rotate to fit the position of the controller.
  • Simple connections to the WLAN Receiver Box or to a Central Station 2, 3, or 3 plus.
  • Up to 32 auxiliary functions can be controlled.
  • 320 solenoid items can be controlled.
  • Built-in Märklin digital locomotive database.
  • Can be used in 2-rail and 3-rail area. ... and of course, all the great features of the MS2.

Digital Wireless Hand Controller.

  • 40 locomotives can be controlled with direct access.
  • Automatic registration of mfx locomotives.
  • Built-in locomotive database for selecting older Märklin/Trix/LGB locomotives.
  • Manual registration of MM and DCC locomotives using digital addresses is possible.
  • Up to 32 locomotive functions can be switched, and there is a display of the function status.
  • Self-explanatory function pictograms for mfx locomotives and database locomotives.
  • Up to 320 solenoid items can be switched. T
  • he unit can be operated with one hand by using the handle (Pop Socket) included with this controller on the back of the latter.
  • Display contents rotate to fit the position of the controller.
  • Lighted Stop button to signal the Stop status.
  • Backlit b/w full graphics display.
  • Dimensions 160 x 100 x 42 mm / 6-5/16" x 3-15/16" x 1-5/8".

The WLAN Mobile Station will establish a wireless connection with the WLAN Receiver Box (60117) or the Central Station (60216, 60226, as well as 60213-60215), when they are in a WLAN-capable network. When you are operating the Mobile Station WLAN connected to the Central Station, you can access the complete locomotive list and the solenoid items with the addresses 1 to 320.

Up to four MS WLAN units can be connected to a WLAN Receiver Box (item number 60117).

Four AAA batteries or rechargeable batteries can be used to operate this device. They are not included with this unit.

Available exclusively in the countries of the European Union, in Switzerland, in the UK, Japan, USA, Canada, Australia and New Zealand.

60117 WLAN Receiver Box
This is a WLAN adapter and is to be connected to the 60116 Digital Connector Box. This unit allows you to couple up to 4 MS WLAN (60667). Simple configuration using a WEB application. Dimensions 96 x 85 x 40 mm / 3-3/4" x 3-3/8" x 1-9/16".

60116 Digital Connector Box
This unit is powered by the 66367 Switched Mode Power Pack and and is the interface between the track and the 60117 WLAN Receiver Box. Dimensions  96 x 85 x 40 mm / 3-3/4” x 3-3/8” x 1-9/16”.

66367 36 VA Switched Mode Power Pack, 120 Volts:
This switched mode power pack is for connecting to and supplying power to the 60116 Track Box. The input is 120 volts / 60 Hertz / the output 18 volts / 36 watts DC voltage. The switched mode power pack is authorized for use as a toy. Dimensions 85 x 55 x 61 mm / 3-3/8" x 2-1/8" x 2-3/8". Connections: DC plug 5.5/2.5 mm.

Märklin
WLAN Mobile Station
23 cm
23 cm
17 cm
1.12 kg
