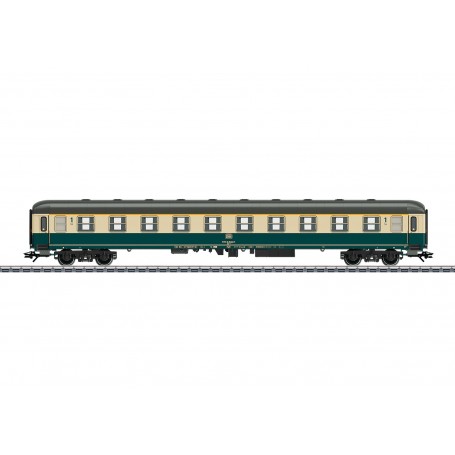

Märklin 43912 (HO) UIC-x (DB) type Am 203.0 compartment car, 1st class - Era IV
Prototype: German Federal Railroad (DB) type Am 203.0 compartment car. UIC-x standard design. 10 compartments, 1st class. Ocean blue / beige paint scheme. The car looks as it did in the Mid-Eighties.
Item Release: 2014 - 2017
NOTE: Factory NEW (never used or 2nd hand). Item box may have some shelf wear
We ship world wide with Canada Post. Canada Post or a courier service will always be at a charge.
> > > > We do NOT offer Free Shipping. Please review our shipping policies on the website main page.
All sales are final. We do not take any item in return or exchange for any reason.
> > > > Most items are covered by manufacturer warranty.
In the event of a warranty issue, we will assist with your claim to respective manufacturer.
> > > > Please review our policies on the website main page.
Highlights
- Entry doors with one-piece door windows.
- Minden-Deutz heavy design (type 361) trucks.
- Newly designed underbody specific to the type of car.
Model: The entry doors have one-piece door windows. The entries have fold-up steps. The newly designed underbody is specific to the type of car. The trucks are Minden-Deutz heavy design (type 361) with disk brakes, without magnetic rail brakes, and with type G 150 axle generators at axle bearing R3. The 7319 current conducting couplings or the 72021 current conducting couplers, the 73406 pickup shoe, the 73400/73401 lighting kit (2 per car), and the 73407 marker light kit can be installed in the car. The minimum radius for operation is 360 mm / 14-3/16".
A decal set is included.
Length over the buffers 28.2 cm / 11-1/8".
DC wheel set E700580.
Data sheet
- Track System
- Märklin HO System (3-rail)
