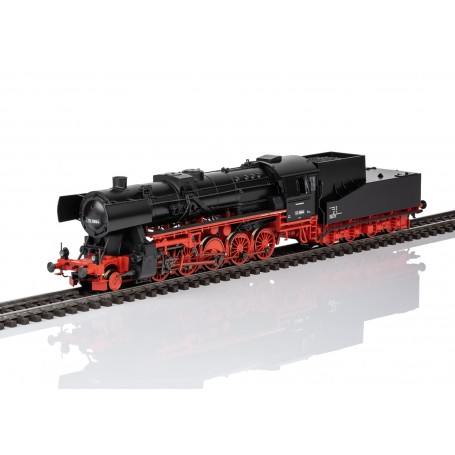

Märklin 39535 (HO) cclass 52 heavy freight locomotive (DB) Era III

Highlights

• Type K4 T30 solid-frame tender with new tooling.
• In keeping with the prototype, the tender has no trucks.
• The wheel sets are mounted on the tender with lateral play.
• The buffer heights on loco and tender conform to NEM specifications.
• The model includes an mfx+ World of Operation digital decoder and a variety of operating and sound functions.
• Intricate running gear made of metal, with a mostly clear view between the running gear and boiler.
• High-performance motor with flywheel, mounted in the boiler.
• A buffer capacitor to bridge short unpowered sections of track is fitted.

Model: The loco has an mfx+ digital decoder and extensive sound functions. It also has a controlled high-performance motor with a flywheel, mounted in the boiler. 5 axles driven. Traction tires. The locomotive and solid-frame tender are constructed mostly of metal. Prepared for installation of a 7226 smoke generator kit. The dual headlights change over with the direction of travel. These and the smoke generator kit that can be installed in the loco will work in conventional operation and can be controlled digitally. The cab lighting is also digitally controllable. Lighting with maintenance-free warm white LEDs. A buffer capacitor is fitted. Close coupling with a guide mechanism between the loco and tender. The rear of the tender and front of the loco have close couplers with NEM pockets and guide mechanisms. The buffer height conforms to NEM specifications.

The minimum radius for operation is 360 mm / 14-3/16".

Protective piston sleeves, brake hoses, and imitation screw couplers are included.

Length over buffers 26.4 cm / 10-3/8".
