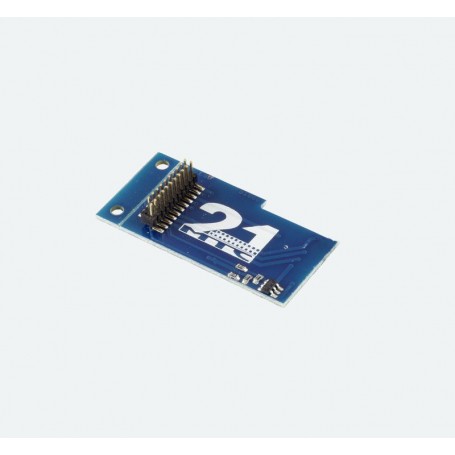

ESU 51968 - 21 MTC Adapter Board 2
The 21 MTC adapter board 2 is also suitable for digitising a loco without interface. It is very helpful, if you do not intend to wire the decoder freely or if you wish to use more than four function outputs on your LokPilot or LokSound decoder. This adapter board simulates the typcial size and shape of Märklin® 6090x-decoders and can be installed in every suitable position.
$16.44
Currency selector Upper-Right Corner: $=USD, CA$=CAD
We ship world wide with Canada Post. Canada Post or a courier service will always be at a charge.
> > > > We do NOT offer Free Shipping. Please review our shipping policies on the website main page.
All sales are final. We do not take any item in return or exchange for any reason.
> > > > Most items are covered by manufacturer warranty.
In the event of a warranty issue, we will assist with your claim to respective manufacturer.
> > > > Please review our policies on the website main page.
Decoders with 21MTC connectors (ESU LokPilot or LokSound favoured) are simply plugged onto the adapter board.
On the output side, the adapter offers already soldered cables (appr. 20cm length) for all contacts needed. Thus the wiring of your loco is child´s play. There are amplifiers (appr. 250mA each) for function AUX3 and AUX4 (the decoder´s logical outputs) so that ESU decoders have up to 6 available physical function outputs.
Dimensions: Length 35.5mm x 20.0mm (With mounting tab: 40.5mm x 20.0mm)
