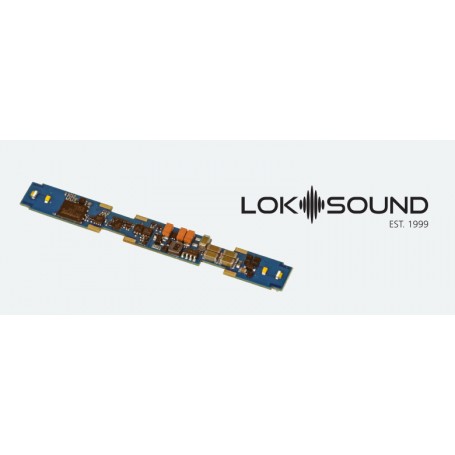

ESU 58721 LokSound 5 micro DCC Direct »SOUND« N-scale
The LokSound 5 micro DCC Direct has been specially developed for installation in N scale locomotives by Atlas and Intermountain. It can be inserted directly instead of the analog board installed there as standard.
..........................................
HobbyTech can load your preferred sound file.
The LokSound decoder is ready for your choice of prototypical sound. It is preloaded with a basic sound file intended for testing only.
First Step: Add your decoder to the Shipping Cart
Second Step: Visit these links to select and add the sound file suitable to your locomotive:
== LokSound 5 North American and Australian Sound files
== LokSound 5 European Sound files
Want to do it yourself?
Get your own LokProgrammer and add a new dimension to your hobby.
We ship world wide with Canada Post. Canada Post or a courier service will always be at a charge.
> > > > We do NOT offer Free Shipping. Please review our shipping policies on the website main page.
All sales are final. We do not take any item in return or exchange for any reason.
> > > > Most items are covered by manufacturer warranty.
In the event of a warranty issue, we will assist with your claim to respective manufacturer.
> > > > Please review our policies on the website main page.
TIP: This decoder may also be used on N-scale models from other manufacturers at your own discretion.
The LokSound 5 micro DCC Direct with its dimensions of 66.0mm x 8.2mm is a pure DCC decoder and comes without a loudspeaker.
Modes
The LokSound 5 micro DCC Direct is a "pure-bred" DCC decoder. 14 to 128 driving steps are as self-evident as 2- and 4-digit addresses. Up to 32 functions can be triggered. Thanks to RailComPlus®, the decoders log in fully automatically to a suitable digital center.
It masters all DCC programming modes and thanks to RailCom® the CV values can be read out on the main track with suitable control panels. Auxiliary registers exist for control panels that can only program the CVs from 1-255.
The LokSound 5 micro DCC Direct Decoder detects the Märklin® brake distances as well as ZIMO® HLU / ZACK commands or the Lenz® ABC system. Braking with DCC brake blocks or dc voltage is also possible. In addition, it also stops with a Selectrix® brake diode. An AUTOMATIC ABC commuter train allows automatic commuting between two stations.The LokSound 5 micro DCC Direct can be used on analog DC webs.The decoder switches "on-the-fly" fully automatically between operating modes. Most of the time, nothing needs to be adjusted.
Sound
The LokSound 5 micro DCC Direct Decoder can play up to 12 channels simultaneously. Each channel can be resolved with up to 16 bits / 31250 kHz and offers hi-fi quality on your system. There is virtually no difference to the original audible anymore. A Class-D audio output stage with up to 3W output power controls the speakers, which have between 4 ohms and 32 ohms impedance. A 128 Mbit sound memory provides enough capacity.All individual noises can be adjusted individually in the volume. The super-flexible sound engine without a rigid schedule allows the exemplary simulation of all conceivable rail tracks.
Functions
The LokSound 5 micro DCC Direct has 10 directly soldered LEDs. Two of them are intended for front and rear head lighting, two more are connected to the aux3 and AUX4 outputs to switch e.g. number boards. A further 6 LEDs on the bottom are intended for ditch lights, but can also be used for other lighting purposes on request. All important lighting functions are available. The brightness of each output can be set separately.
Motor
The motor control of the LokSound 5 micro DCC Direct has a variable PWM clock frequency from 10kHz to 50kHz, which ensures super-quiet operation, especially for bell anchor motors – the hitherto typical "hum" is a thing of the past. The load control can be adapted to difficult cases with up to 10 CVs. The unique "Autotune" function allows the decoder to be automatically measured against the motor. The LokSound 5 micro DCC Direct Decoder delivers up to 0.9A motor power.
Protection
Of course, the outputs are protected against overload. We want you to enjoy your decoder for as long as possible
