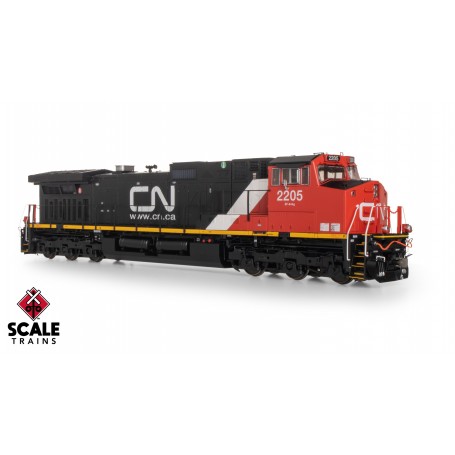

ScaleTrains Rivet Counter (HO) GE DASH 9-44CW Canadian National /Teardrop Windshields/Red Marker Lights - DCC/Sound
ScaleTrains Rivet Counter | HO Scale | Diesel Locomotive - DCC/Sound
GE DASH 9-44CW/
Canadian National, CN
/Teardrop Windshields/Red Marker Lights
| Item Number (SKU) | Road Number | Stock Status |
| SXT41551 | # 2202 | Sold Out |
| SXT41553 | # 2203 | |
| SXT41555 | # 2204 | |
| SXT41557 | # 2205 |
>> ESU-LokSound 5 DCC and Sound decoder with “Full Throttle”
The GE DASH 9 Series debuted in 1993 with numerous electronic upgrades, building on the DASH 8 platform. Available with 4,000 or 4,400hp, they were well-received by the railroads and their employees, quickly becoming one of the most common locomotive types in North America. The DASH 9s remained in production until the early 2000s when it was superseded by GE’s “Evolution Series” ES40/44-series models.
Product customization
Don't forget to save your customization to be able to add to cart
We ship world wide with Canada Post. Canada Post or a courier service will always be at a charge.
> > > > We do NOT offer Free Shipping. Please review our shipping policies on the website main page.
All sales are final. We do not take any item in return or exchange for any reason.
> > > > Most items are covered by manufacturer warranty.
In the event of a warranty issue, we will assist with your claim to respective manufacturer.
> > > > Please review our policies on the website main page.
With railroad, road number, and era specific™ details, our Rivet Counter™ series DASH 9 is the definitive model of this popular GE locomotive. In our continuing effort to push the boundaries of realism in model railroading, the Rivet Counter DASH 9 features operating LED front, rear, and side walkway lights. Available as DC/DCC with a 21-pin connector or with ESU LokSound™ 5 DCC & sound pre-installed at the factory.
Road Number Specific ScaleTrains
- New road numbers
- Era: 2004 to Present
- Series 2200 to 2205, built 01-02/2004
- Canadian “teardrop” front windshields and red front and rear LED-illuminated marker lights
- Walkway with sectional see-through grating, and ribbed anticlimbers, front and rear
- Fully-assembled
- Multiple road numbers
- No truck ground lights (prototype not equipped)
- Operating LED front, rear, and side walkway lights*
- Operating LED front and rear deck-mounted ditch lights with visors **
- LED-illuminated high-mount cab number boards*
- Short snowplow with open doors and grab irons
- Semi-scale coupler buffer equipped with durable metal semi-scale Type E knuckle couplers
- 4-step stepwells with see-through steps
- GE “nub” pattern walkway tread
- Wide profile end handrails
- Front nose headlight
- Nose door without window
- Two-piece nose top grab irons
- Standard electrical cabinet access doors
- Battery cabinet access door with latch
- Cab interior with detailed back wall and front dash, high-back seats, conductor’s workstation, and engineer’s AAR-style control stand
- Tinted cab side windows
- Medium mirror mounted in front of sliding cab side windows on both sides; additional small mirror on right side
- Large Sinclair “ice skate” communication antenna and three small Sinclair “ice skate” antennas
- Electrical cabinet with drop grab irons on rear
- No walkway HVAC unit installed
- Continuous reinforcement rib under dynamic brake intake grilles, with emergency stretcher compartment adjacent
- Late dynamic brake exhaust
- Late angled engine cab profile with raised “dot” treadplate on centerline
- Lost-wax brass cast Nathan AirChime K3LA horn mounted on engine cab
- Late non-flanged exhaust stack housing
- “Bathtub” exhaust silencer
- 26 individually applied etched metal see-through radiator intake and exhaust grilles on the sides and top of the radiator compartment
- Right side late radiator door grilles in alternating heights
- Standard brake wheel
- Left rear hood door grille arrangement: tall, short, tall grilles
- High-mounted rear sand fill
- Late angled lifting “tabs” on ends of radiator wings
- Accurately profiled frame with separately-applied plumbing and traction motor cabling
- Late Hi-Ad trucks with cantilever struts on right front and left rear side frames, and flange lubricator sticks
- Rust-color painted wheelsets
- Rotating axle bearing caps
- Speed recorder on left side second axle
- Speed recorder on the second axle on both sides
- Dual Graham-White (Prime) 975-075 Air Filters
- Graham-White 975-100 “Twin Tower” Air Filter Dryer
- 5,000-gallon fuel tank with vertical weld seams
- Single fuel fills per side
- Digital fuel gauge
- Fuel tank-mounted steel bell
- Separate air tanks with lower mounting brackets and connector pipe
- Late handbrake chain brackets with dual pulleys
- Spare coupler knuckle holders on rear pilot face
- Factory-applied detail parts: wire grab irons, spare knuckles, trainline hoses with silver gladhands, 3-hose MU clusters with silver gladhands, uncoupling levers, windshield wipers, mirrors, sunshades, and more
- Motor with 5-pole, skew-wound armature
- Dual flywheels
- All-wheel drive and electrical pick-up
- Directional LED-illuminated headlights
- Printing and lettering legible under magnification
- Operates on Code 70, 83, and 100 rail
- Packaging safely stores the model
- Minimum Radius: 18”
- Recommended Radius: 22”
DCC & sound equipped locomotives also feature:
- ESU LokSound 5 DCC & Sound decoder with “Full Throttle” functions
- Two (2) cube-type speakers
- Turbocharged GE 7FDL16 prime mover sounds
- ESU designed “PowerPack” with two super capacitors***
- Operates on both DC and DCC layouts
DC/DCC & sound-ready locomotives also feature:
- Operates on DC layouts
- DCC-ready with 21-pin connector
* Lighting features operate when using an ESU decoder with appropriate programming while operating using DCC.
*** In DC operation, both front ditch lights illuminate; rear ditch lights (if equipped) do not illuminate
**** Compatible with appropriately programmed ESU decoders while operating using DCC
