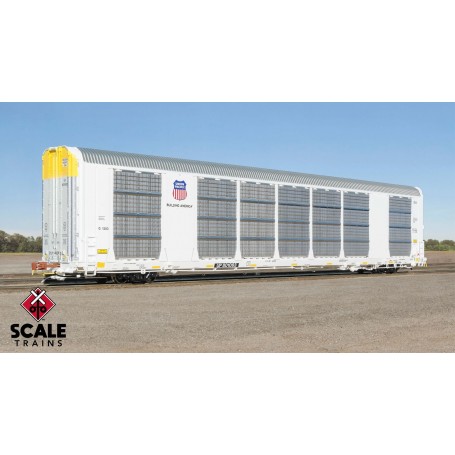

ScaleTrains Rivet Counter (HO) Gunderson Multi-Max Autorack, Union Pacific/White/Building America/UP
The Rivet Counter series Multi-Max Autorack features maximum detail. Railroad, road number, and era specific details include four (4) body variations; 14 individually applied etched-metal side panels; three (3) ladder styles; two (2) types of end doors; end door rods; three (3) end sill configurations; two (2) different upper and lower side panel mountings; inside or outside mounted brake cylinder, brake beam, and brake rod support mounting brackets.
| Item Number | Road Number | Stock Status |
| SXT39155 | # 801141 | |
| SXT39156 | # 801173 |
Product customization
Don't forget to save your customization to be able to add to cart
We ship world wide with Canada Post. Canada Post or a courier service will always be at a charge.
> > > > We do NOT offer Free Shipping. Please review our shipping policies on the website main page.
All sales are final. We do not take any item in return or exchange for any reason.
> > > > Most items are covered by manufacturer warranty.
In the event of a warranty issue, we will assist with your claim to respective manufacturer.
> > > > Please review our policies on the website main page.
Road Number Specific ScaleTrains
- New road numbers
- Era: 2020 to present
- UP series 801000-801299, former UCRY series 1220-1449 and 1800-1899; built 7/2019 to 1/2020
- Fully assembled
- Multiple road numbers
- Car rack numbers and ARR rack clearance data is specific to each road number
- Current body type
- 14 photo etched metal side panels
- Upper side panel mounting with three (3) outside mounting tabs and no strip
- Lower side panel mounting with four (4) lower recessed tabs and ¾ width strip
- Two (2) main bodies of rack mounting holes in painted side panels for bilevel cars
- Late end doors with “zig-zag” angle panels
- Separate door rods
- End sill step, end sill grab irons, and side sill grab irons
- Low mounted side ladders
- Photo etched metal defect card holder
- Additional tube type defect card holder
- Gunderson builder’s plate
- Factory-applied metal grab irons, coupler cut levers, and trainline hoses
- Outside side sill brake cylinder and brake beam mounting brackets
- Outside side sill brake rod support brackets
- Underbody brake plumbing with separate air reservoir, control valve, and retainer valve plus separately applied wireform plumbing including trainline pipe with brackets
- Semi-scale coupler boxes
- Durable body-mounted die-cast metal semi-scale standard Type E extended shank couplers
- ASF low deck swing motion trucks with finely rendered raised foundry data; Black rotating bearing caps; separate “truck-mounted brake” brake beams; and side bearing detail
- Timken three-sided bearing caps
- Painted reporting mark and road number on all four trucks
- 28” machined metal wheels with accurately profiled .110" wide wheel tread
- Operates on Code 70, 83 and 100 rail
- Printing and lettering legible even under magnification
- FRA-224 yellow conspicuity stripes
- Paint colors match Tru-Color Paint color: Roof TCP-354 galvanized steel
- Weighted to Industry standards for reliable operation
- Packaging safely stores model
- Minimum radius: 24”
- Recommended radius: 26”
