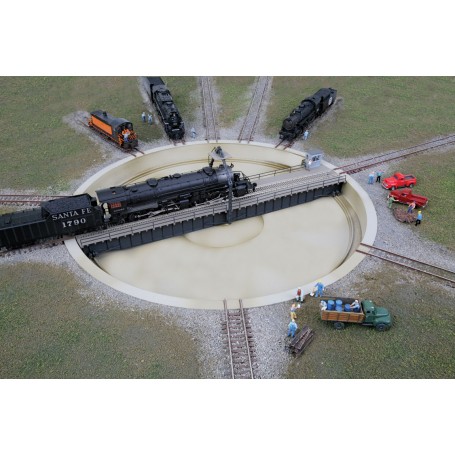

Walthers Cornerstone 2860 (HO) Motorized 90' Turntable

Walthers Cornerstone (HO scale 1:87)

Motorized 90' Turntable -- Assembled - 13-3/4" 34.9cm Overall Diameter

Sure to be the focal point of any HO Scale engine terminal, this Walthers Cornerstone 90' Motorized Turntable is where steam locomotives, and later diesels, were turned around at the end of their runs. Normally serving a roundhouse, most smaller turntables were placed adjoining the roundhouse and servicing tracks. This 90' turntable is large enough to turn typical locomotives as large as a 2-8-2 Mikado or 4-6-2 Pacific. It'll look great at smaller terminals, at junctions and anywhere else steam locomotives must be turned. On your layout use the 90' Motorized Turntable as the heart of your servicing facility

$346.66 $395.98 -12.46%

Quantity

We ship world wide with Canada Post. Canada Post or a courier service will always be at a charge.

> > > > We do NOT offer Free Shipping. Please review our shipping policies on the website main page.

All sales are final. We do not take any item in return or exchange for any reason.

> > > > Most items are covered by manufacturer warranty.

In the event of a warranty issue, we will assist with your claim to respective manufacturer.

> > > > Please review our policies on the website main page.

Description

Typical of tables built from 1900s on - some still in service today
Fits most engine terminals
Holds locos up to 12-3/8" 31.4cm long
User-friendly, illustrated instructions simplify operation and programming
Layout mounting templates for pit and Cornerstone Turntable Control Box
Control Box included for use on layouts with DC or DCC train control
New Cornerstone Turntable Control Box for simple operation and programming with:
- Programmable indexing for up to 99 different tracks
- One-touch 180-degree bridge rotation in either direction
- Simplified LED display with adjustable brightness
- Operable from up to four remote locations with additional Control Boxes (933-2320 each sold separately)
  - Comes complete with motor and Control Box, operates on 12-18v AC, 16-24v DC power supply (power supply not included)
  - Comes with Code 83 rail installed on bridge

Optional: To control turntable operation with DCC throttle or serial UART controller, purchase Cornerstone Advanced Control Module (933-2321, available separately)

Requires 12-3/4" 32.3cm mounting hole 13-3/4" 34.9cm overall diameter
